Color Measurement
and Analysis
CT&A Color Rendering Index (CRI)
data export dialogs

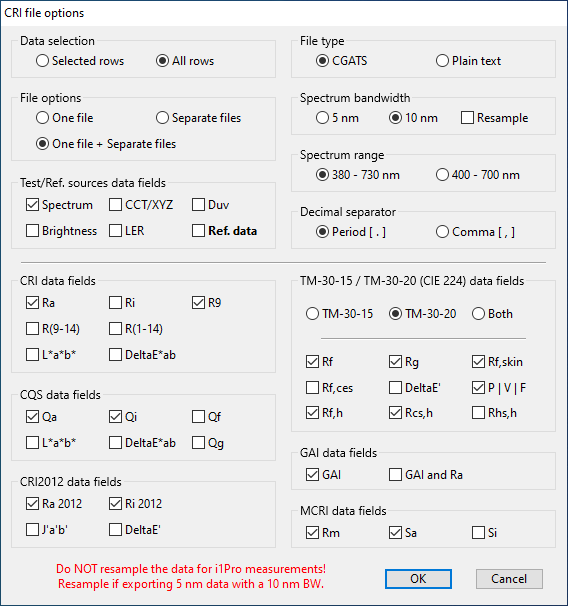

You can save data reports in text files for ALL CRI metrics. The export options dialog is shown above. With this dialog you can:
•
select amongst the data used for the graphs, the general and specific metrics indices, and the Test source data;
•
export all measurements or only selected measurements;
•
export in a single file report or in a batch of individual files (one file per measurement), or both options;
•
export in CGATS format, which can easily be used for file input afterwards, or in Plain text format.

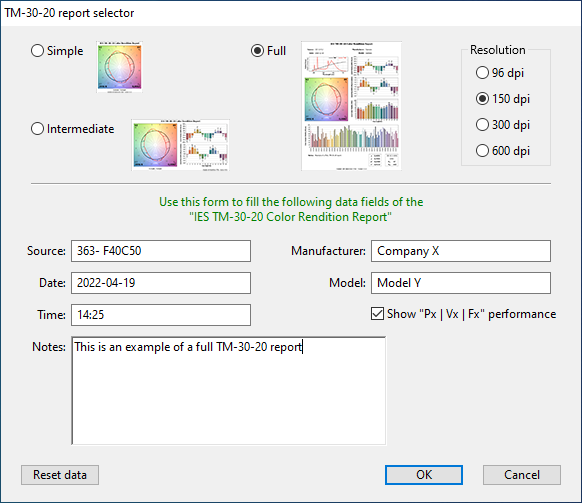

In addition, for the TM-30-20 method, you can generate graphic reports as per the method guidelines. The report selector dialog is shown
below. Three report types are available: Simple, Intermediate, and Full. These reports are saved as images in PNG, TIF, BMP, or JPG format.
The image resolution is selectable at 96, 150, 300, or 600 DPI. You can get a pdf with full size examples of the reports by clicking on any image
at the bottom.
Simple report

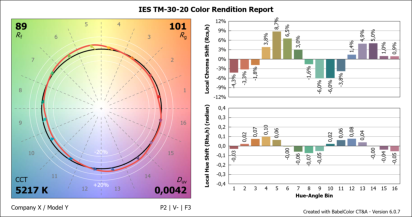

Intermediate report

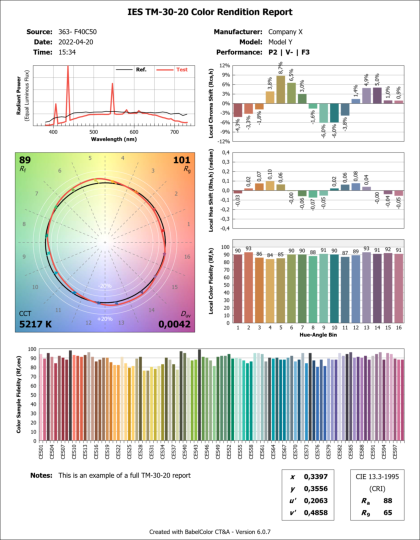

Full report
Click on any image to open a pdf with all three TM-30-20 report types at their nominal sizes.
